Install on Windows Server (MSI)

Prerequisites

• Operating System: Windows Server 2016+, Windows 10, or Windows 11 (64-bit)
• Privileges: Administrator privileges
• Network Ports (Server):
  • 4320 (TCP / WebSocket) — Agent OpAMP communication
  • 4321 (TCP / HTTP) — Web Console and REST API
• Agent Nodes: OpenTelemetry Collector installed or binary available (e.g. C:\Program Files\OpenTelemetry Collector\otelcol-contrib.exe)

Part 1: Install CollectorCtrl Management Server

Step 1: Download the Server Installer

Download the latest Windows installer package from the CollectorCtrl Releases page on GitHub:

• PostgreSQL Edition: Recommended for production fleets — includes an offline bundled PostgreSQL installer for single-click local database setup, or connects to an existing PostgreSQL database.

Step 2: Run the Server Setup Wizard

1. Right-click the downloaded .exe and select Run as Administrator.

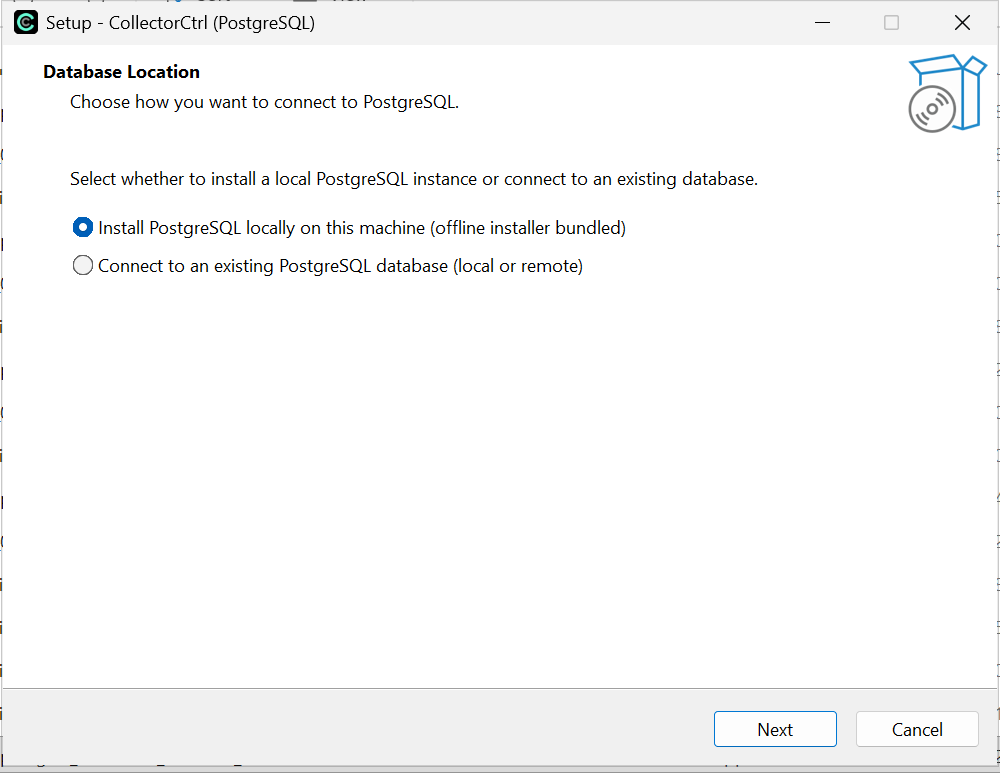

2. Database Location: Choose how you want to connect to PostgreSQL:
   • Install PostgreSQL locally on this machine (offline installer bundled): Recommended for all-in-one local setup. The installer automatically extracts and configures a local PostgreSQL 15 instance without needing external downloads.
   • Connect to an existing PostgreSQL database: Select this if you already run PostgreSQL locally or on a remote server.

Expand

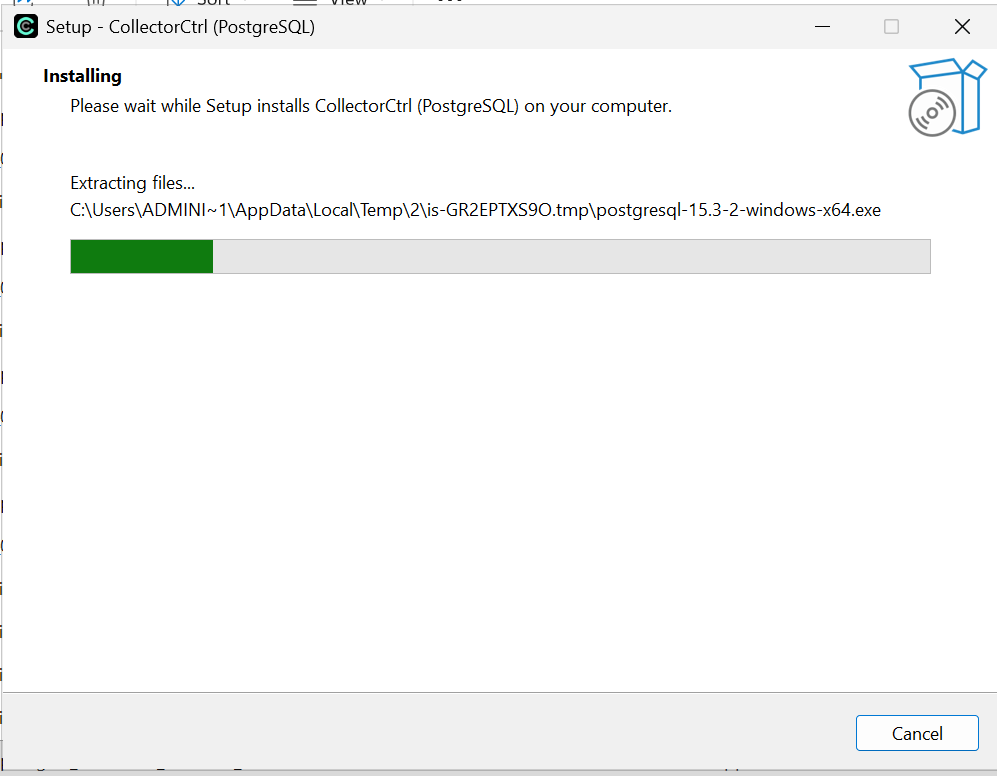

3. Click Next to proceed with installation. The installer extracts files, runs the bundled PostgreSQL installer (if local installation was selected), sets up the database schema, and registers the CollectorCtrl Windows Service:

Expand

4. Complete the wizard. The CollectorCtrl service starts automatically.

Step 3: Access the Web Console

Open your web browser and navigate to:

👉 http://localhost:4321 (or http://<YOUR_SERVER_IP>:4321 if connecting remotely)

Default credentials:

• Username: admin
• Password: admin

Part 2: Managing the Server Windows Service

The CollectorCtrl server runs in the background as a native Windows Service (CollectorCtrl). You can start, stop, or check its status using PowerShell (as Administrator) or the Services console (services.msc):

# Check service status
PS >Get-Service CollectorCtrl

# Restart service
PS >Restart-Service CollectorCtrl

# Stop service
PS >Stop-Service CollectorCtrl

Part 3: Install the Supervisor Agent

Install the Supervisor agent on every Windows server where you want to manage an OpenTelemetry Collector.

Step 1: Download the Supervisor Installer

Download the latest Supervisor installer (collectorctrl-supervisor_..._windows_amd64.exe) from the Releases page or from the Get Started page on your CollectorCtrl server.

Step 2: Run the Supervisor Setup Wizard

Right-click the installer .exe and select Run as Administrator.

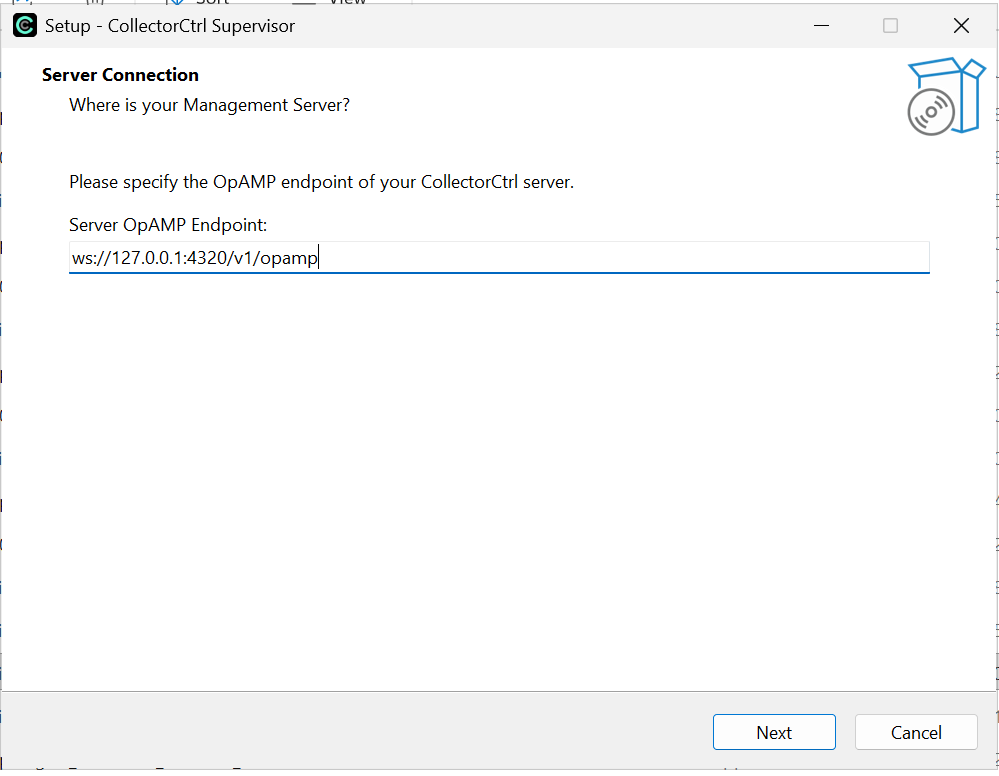

1. Server Connection

Enter the OpAMP WebSocket endpoint of your CollectorCtrl Management Server:

• For agents running on the same machine: ws://127.0.0.1:4320/v1/opamp
• For remote agents across the network: ws://<YOUR_SERVER_IP>:4320/v1/opamp

Expand

Click Next.

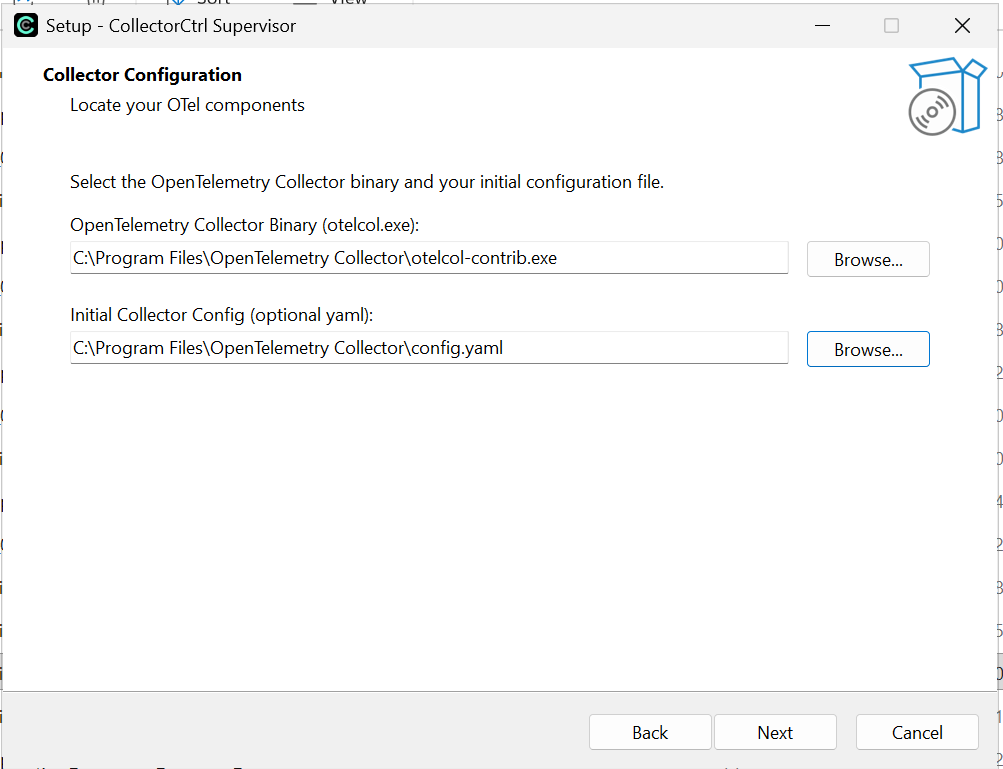

2. Collector Configuration

Specify the paths to your OpenTelemetry components on the host:

• OpenTelemetry Collector Binary (otelcol.exe): Browse to the location of your collector binary (e.g. C:\Program Files\OpenTelemetry Collector\otelcol-contrib.exe).
• Initial Collector Config (optional yaml): Browse to your initial collector configuration file (e.g. C:\Program Files\OpenTelemetry Collector\config.yaml).

Expand

Click Next.

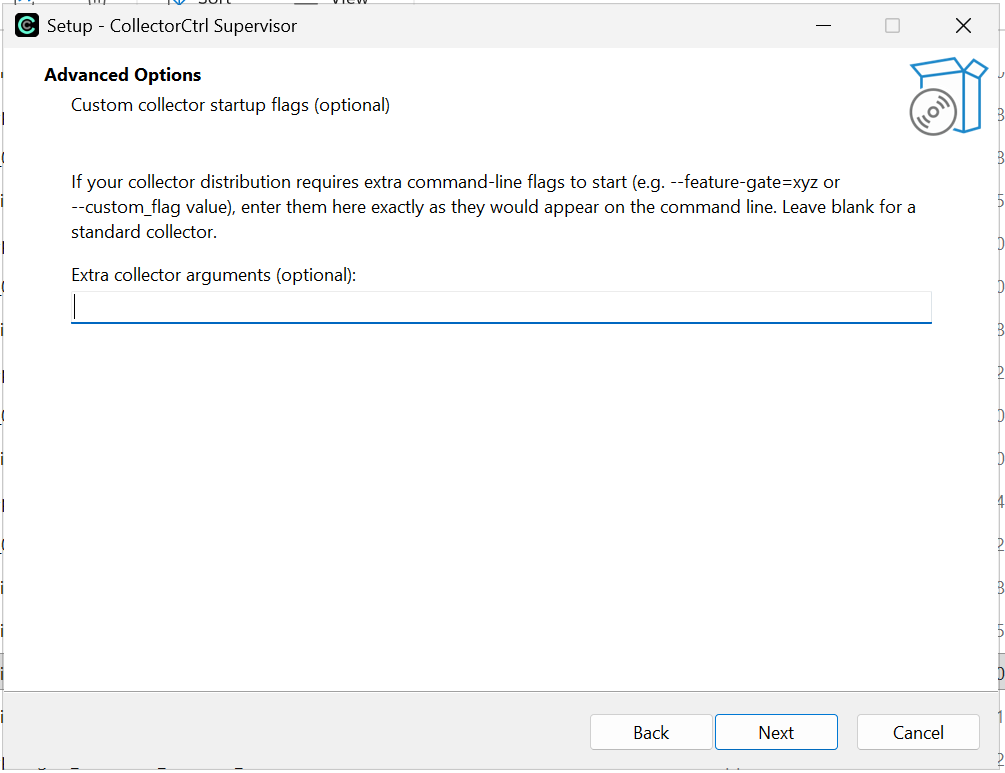

3. Advanced Options (Optional)

If your OpenTelemetry Collector requires specific startup arguments or feature gates (such as --feature-gate=xyz), enter them here. For standard collectors, leave this field blank.

Expand

Click Next.

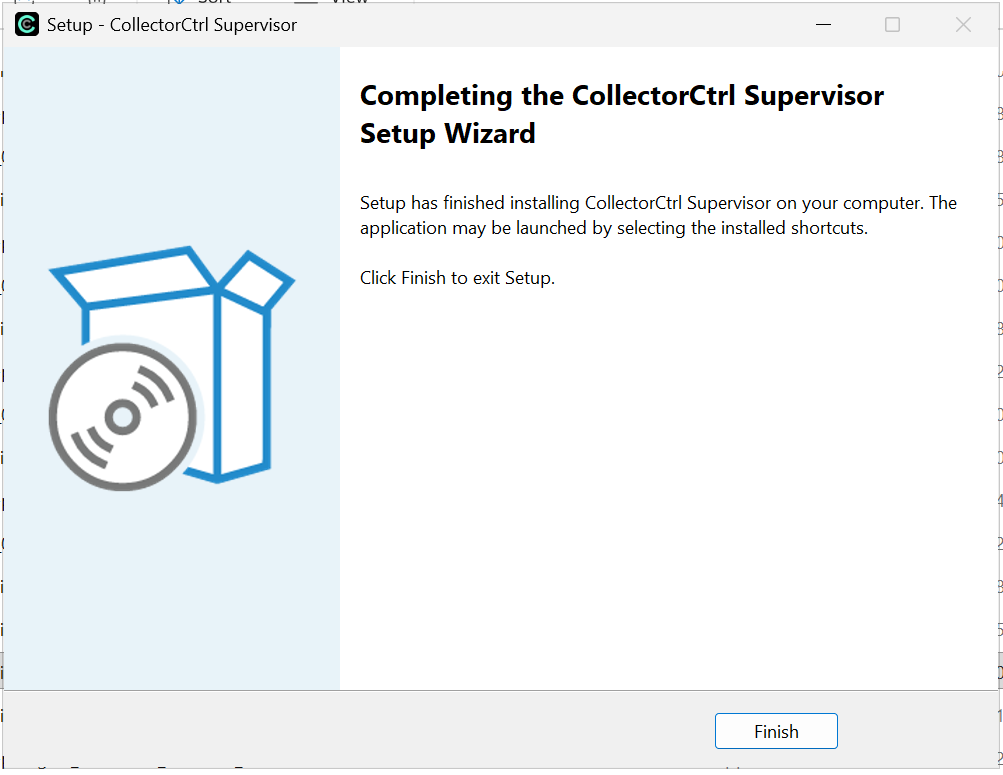

4. Complete Installation

Click Finish to complete setup.

The installer automatically:

• Generates C:\Program Files\CollectorCtrl Supervisor\supervisor.yaml with your parameters
• Registers the CollectorCtrlSupervisor Windows Service
• Starts the service in the background

Expand

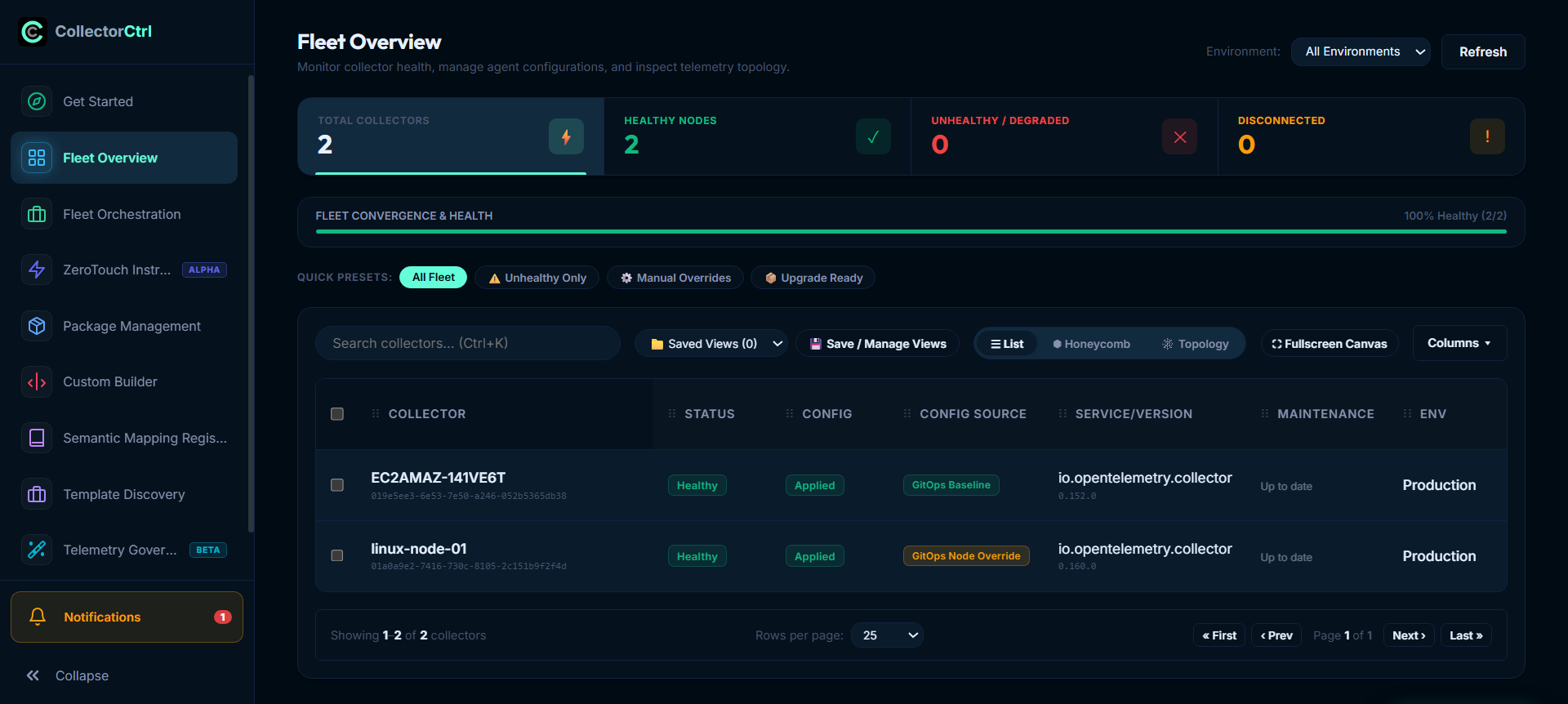

Step 3: Verify in Fleet Overview

Navigate to Fleet Overview in your CollectorCtrl Web Console (http://<YOUR_SERVER_IP>:4321).

Within 30 seconds, your Windows collector node will check in and appear with:

• Status: Healthy
• Config: Applied
• Service/Version: Displays the detected collector binary and version
• Environment: Assigned environment tag (e.g. Production)

Expand

Service Management Reference

Supervisor PowerShell Commands

Manage the Supervisor service using PowerShell as Administrator:

# Check supervisor service status
PS >Get-Service CollectorCtrlSupervisor

# Restart supervisor
PS >Restart-Service CollectorCtrlSupervisor

# Stop supervisor
PS >Stop-Service CollectorCtrlSupervisor

Configuration Reference

Default Windows Paths

supervisor.yaml Template

server:
  endpoint: 'ws://YOUR_SERVER_IP:4320/v1/opamp'
  tls:
    insecure_skip_verify: true

capabilities:
  reports_effective_config: true
  reports_own_metrics: true
  reports_own_logs: true
  reports_own_traces: true
  reports_health: true
  accepts_remote_config: true
  reports_remote_config: true
  accepts_restart_command: true
  accepts_packages: true

agent:
  executable: 'C:\\Program Files\\OpenTelemetry Collector\\otelcol-contrib.exe'
  passthrough_logs: true
  config_files:
    - 'C:\\Program Files\\OpenTelemetry Collector\\config.yaml'

storage:
  directory: 'C:\\ProgramData\\CollectorCtrlSupervisor\\storage'

telemetry:
  logs:
    level: info
    output_paths:
      - 'C:\\ProgramData\\CollectorCtrlSupervisor\\supervisor.log'

Firewall Requirements

Ensure the following ports are open on the CollectorCtrl server:

PowerShell Firewall Rules (Run on Server):

# Allow OpAMP WebSocket
PS >New-NetFirewallRule -DisplayName "CollectorCtrl OpAMP" -Direction Inbound -LocalPort 4320 -Protocol TCP -Action Allow

# Allow Web Console & API
PS >New-NetFirewallRule -DisplayName "CollectorCtrl Web Console" -Direction Inbound -LocalPort 4321 -Protocol TCP -Action Allow

Next Steps

• Create your first Fleet Policy — Define targeting rules and deploy configurations fleet-wide
• Upgrade Supervisor Remotely — Remotely push new collector versions with rollback protection
• Configure SSO & Authentication — Integrate OIDC/SAML for enterprise team access
